UV Conformal Coating Inspection System

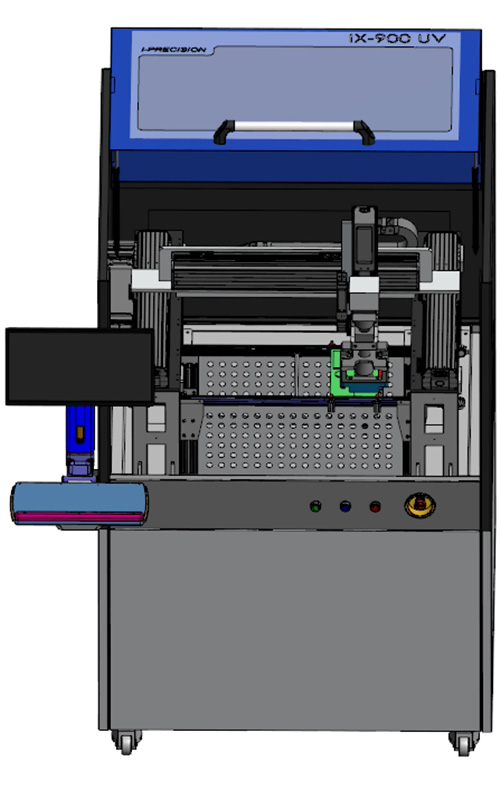

System Lay-Out

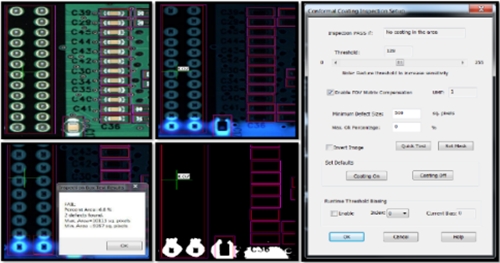

Application Set-Up Display

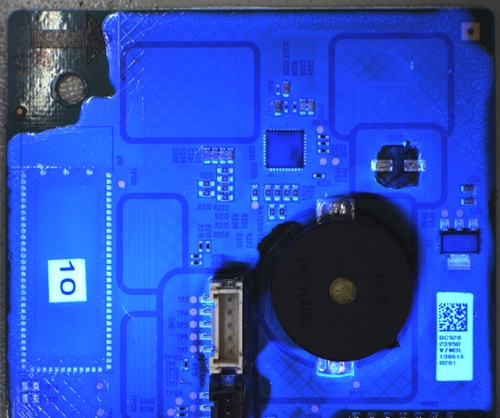

UV Conformal Coating Image

UV conformal inspection system

Easy UV-Activating Isolation Protecting Coating Inspection Provided by a unique conjunction of multiple layers of lighting and precise optical camera design.
Additional options available for rapid measurement through specialized Image Processing and isolated width detection.

  • PCB Size : >500mm (Double PCB 대응 가능)
  • Dimension : 1,000 x 1,300 x 1,500
  • Process Time : <30 sec
  • Image Vision System : 5Mega Less than
  • Utility : CDA(0.5MPa), Power(220VAC, 50~60Hz)
  • Option : Thickness Measurement

System Integration

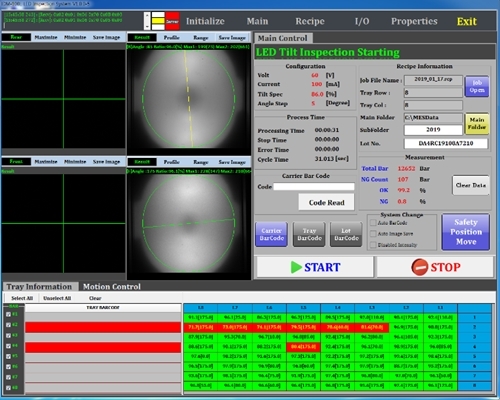

SOFTWARE Development
  • Developed In-Line Automation System

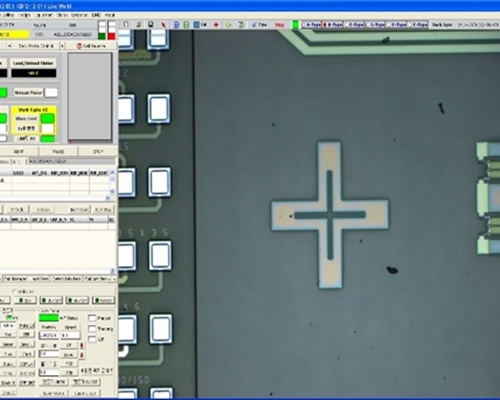

  • Developed Vision Inspection System
Appliances Design and Assemble
  • Automated Inspection Equipments Design and Assemble
  • Manual Inspection Equipments Design and Asseble
Electric Apparatus Control System Design and Panel Manufacture
  • Automation System Design and Panel Manufacture
  • Inspection Equipment System Design and Panel Manufacture
  • Assembled Corresponding to Certification Related CE, Samsung, LG, SK Hynix, etc. Environmental Criteria
